Mill Creek High Rate Treatment Facility Diversion Structure Design-Build Project

Location: Cincinnati, OH
Project Type: Rehabilitation
Owner:
The City of Cincinnati | Metropolitan Sewer District of Greater Cincinnati
General Contractor:
Ulliman Schutte Construction | David Macmannis, PM 937.910.9900
Engineer:
Burgess & Niple | 614.459.205

Project Scope

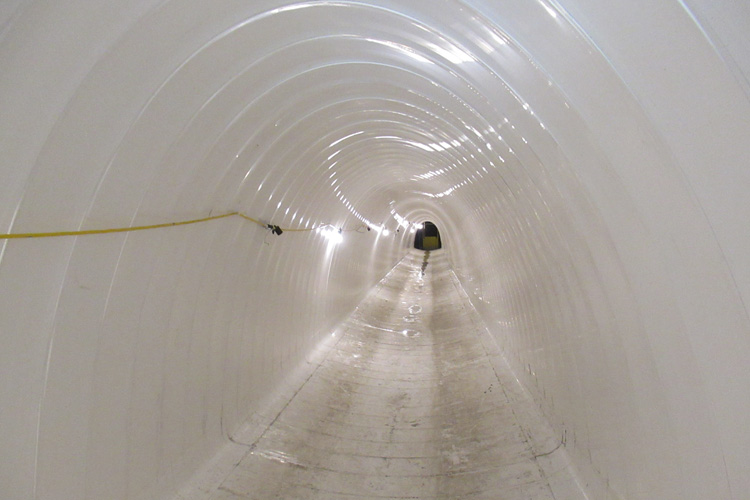

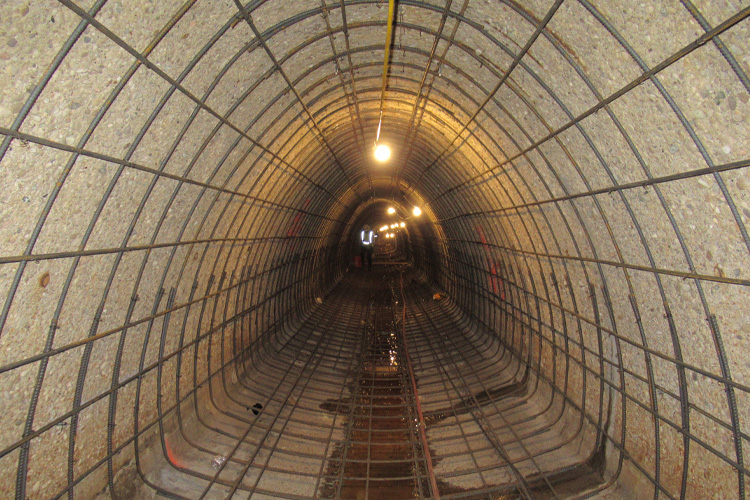

This project consisted of rehabilitation of 700 LF of semi-elliptical sanitary sewer. The existing cast-in-place sanitary sewer was built in 1930’s being 90 years old. The scope of work included installation of temporary bulkheads, hydro blasting with 6000-10,000 psi water pressure, installation of rebar, installation of Danby PVC Liner and grouting with 5000 psi Structural Grout. The access to the sewer was through an existing sluice gate chamber and 4 ft. diameter manhole approximately 50 ft. deep.

Project Details

Original Construction Cost:
$2,750,972
Final Construction Cost:
$2,740,622
Date of Notice to Proceed:
09/2019
Type of Construction:
Rehabilitation
Substantial Completion:
03/2020
Project Manager:
Datta Shirodkar
Project Superintendent
Kevin Treadwell
Major Subcontractor:
Boyer Self Performed
