Emergency Repairs - WCID#111 Huntington Bayou WWTP

Project Scope

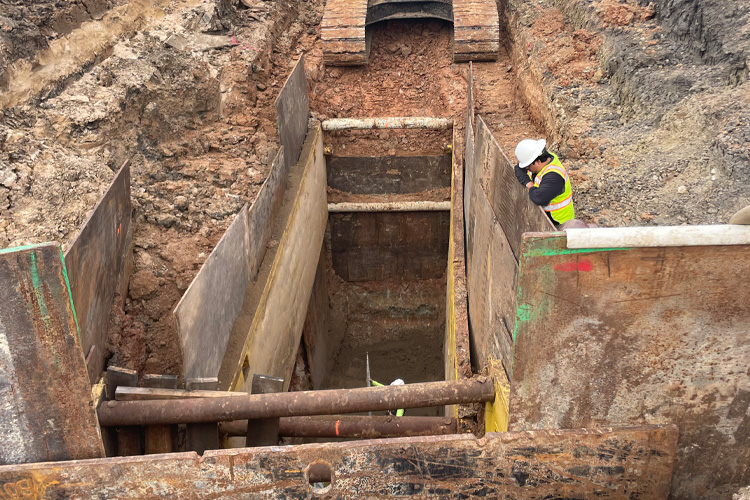

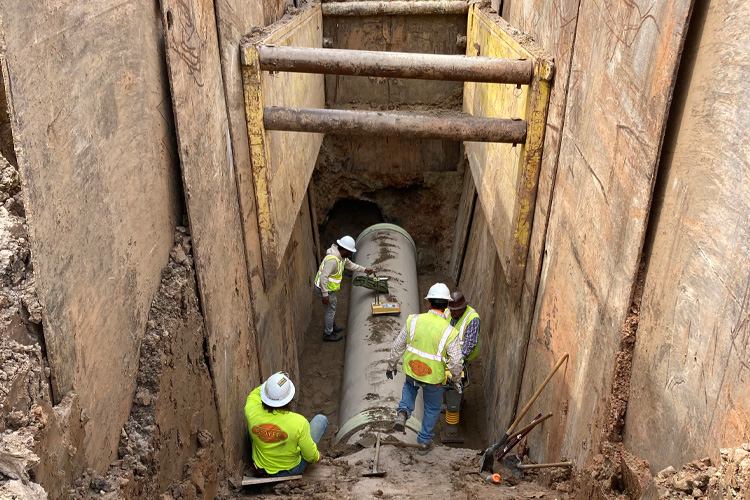

City of Houston issued EPO (Emergency Purchase Order) to abandon in?place an existing 42” concrete sanitary sewer that add multiple failures from existing MH No. 1 to the existing junction box outside of the effluent lift station. ?A 42” HOBAS Pipe was placed adjacent to the existing 42” concrete sanitary sewer for a distance of 670 LF at a depth of 32’. Means and methods were open cut and jack and tunnel due to utilities in the plant. The plant remained in full operation therefore a bypass system was put in place to handle sewage from MH No. 1 to the effluent lift station. In addition, due to the depth, a dewatering system ran the length of the repair to handle ground water which was at a depth of 30’. The junction box was relined with a raven epoxy while the by-pass system was running.?? ?
